Current State of Envirotron Web
Most Major features functional (Alerts, mostly functional outlooks, data storage)
Recent Features
- All ECCC Icon Codes now work

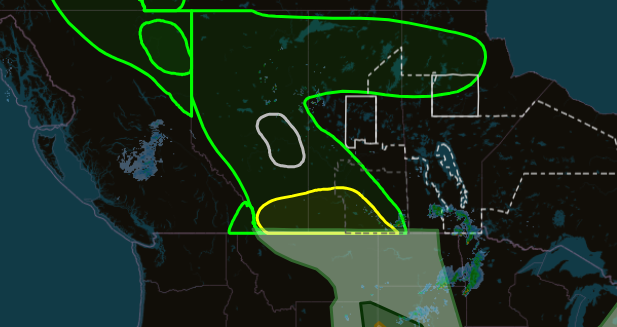

Additional Data on outlooks

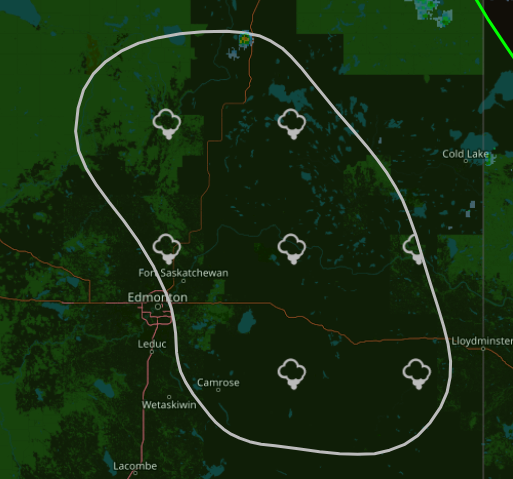

Thunderstorm Outlook funnel cloud region

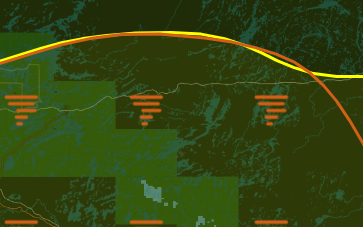

Thunderstorm Outlook High Tornado Risk Region
Aditional styling on some alerts
some Alerts have a caption that displays on them

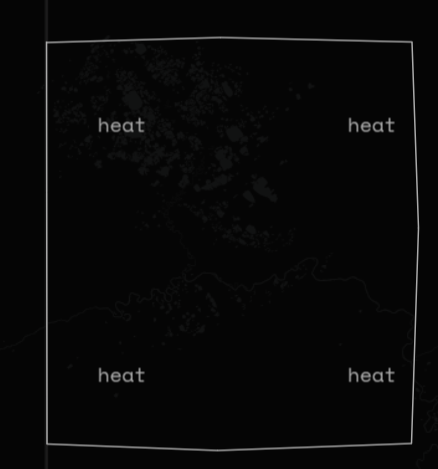

Heat Warning
Warnings
some severe warnings(currently Tornados and waterspouts) have additional stripes on them

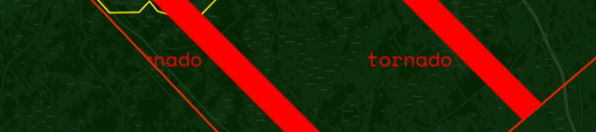

Tornado Warning - has stripes and text
Watches and Advisories
Watches and Advisories have a dashed outline instead of a solid outline.

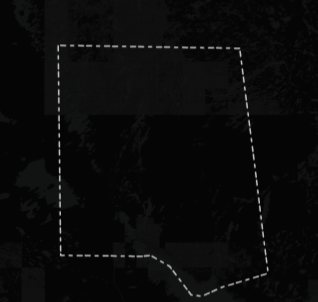

Special Air Quality Statement
Current Bugs/Missing features
- ECCC Outlooks not auto loading (onto server)
- NWS Outlooks past Day1
- Components dont auto restart
- Extra symbols show up
- Timezones?
- local alerts getting frozen until webserver reboot
Untested
- Extreme Risk ECCC TSO
Project Layout
Alerts
sequenceDiagram
autonumber
participant Web Server
destroy DL
DL->>Alerts Exchange: CAP
activate Alerts Exchange
Alerts Exchange->>+AX: CAP
deactivate Alerts Exchange
AX->>+Feed Exchange: Feed Message Json<br/>AX.queue.{event}
create participant Distributor
Feed Exchange->>-Distributor: Feed Message Json
activate Distributor
Note left of Distributor: Immediately Queues <br/>or schedules message for later<br/><br/>depends on attached timestamp
AX->>-Alerts Exchange: Alert Json <br/>alerts.{event}.{urgency}.{certainty}
activate Alerts Exchange
Alerts Exchange->>Web Server: Alert Json
deactivate Alerts Exchange
Distributor->>+Feed Exchange: Feed Message Json<br/>BRODCAST.active.{event}
deactivate Distributor
Feed Exchange->>Web Server: Feed Message Json
#Feed Exchange->>Bsky: Feed Message Json
deactivate Feed Exchange Outlooks
sequenceDiagram
autonumber
Outlook->>+Outlooks Exchange: ECCC TSO Json<br/>outlook.ECCC.{day}
Outlooks Exchange->>-Web Server: ECCC TSO Json
Outlook->>+Outlooks Exchange: NWS Outlook Json<br/>outlook.NWS.d{day}_{type}
Outlooks Exchange->>-Web Server: NWS Outlook Json
